Arc Bonded Neodymium Magnet

1. Material: Bonded neodymium magnet 2. Processing Method: Compression moulding 2. Shape: Arc / Segment 3. Dimensions: As required / Customized 4. Grade: TN1 - TN12 (Click here to check the grade of bonded NdFeB magnet) 5. Coating: Epoxy,Parylene 6. Magnetized: Diametrical,Multi-poles and etc. 7. Max working Temp.: 160℃-180℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :

Irregular Bonded Neodymium Magnet

1. Material: Bonded neodymium magnet 2. Processing Method: Compression moulding 2. Shape: Irregular / Cuotomized 3. Dimensions: As required / Customized 4. Grade: TN1 - TN12 (Click here to check the grade of bonded NdFeB magnet) 5. Coating: Epoxy,Parylene 6. Magnetized: Thickness,Width,Length and etc. 7. Max working Temp.: 160℃-180℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :

Block Bonded Neodymium Magnet

1. Material: Bonded neodymium magnet 2. Processing Method: Compression moulding 2. Shape: Block / Rectangle 3. Dimensions: As required / Customized 4. Grade: TN1 - TN12 (Click here to check the grade of bonded NdFeB magnet) 5. Coating: Epoxy,Parylene 6. Magnetized: Thickness,Width,Length and etc. 7. Max working Temp.: 160℃-180℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :

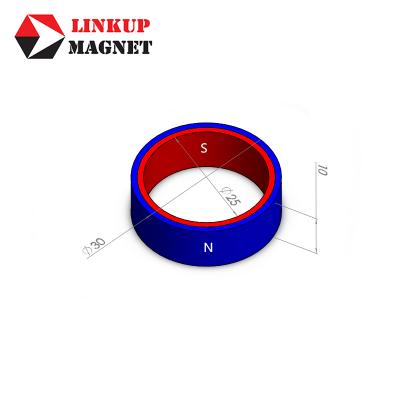

Radial Oriented Sintered NdFeB Ring Magnet

Radial oriented sintered neodymium magent is a sintered integrated magnetic ring, which can be radial magnetized by multi-pole, skewed multi-pole,or uni-pole on outer diameter and inner diameter through the different magnetizing tooling. It can replace the multi-pole magnetic assembly spliced by several arc segment magnets. 1. Material: Sintered neodymium magnet 2. Shape: Ring 3. Dimensions: Customized and limited, please see product details 4. Grade: Please contact our sales engineer for the details. 5. Coating: NiCuNI,Epoxy and etc. 6. Magnetized: Radial magnetized 7. Max working Temp.: 80℃ - 180℃

Low Deviation Angle Sintered Neodymium Magnet

Low deviation angle magnet are mostly used in sensors in instruments and meters. Because these fields have high requirements for accuracy, they have high requirements for magnetic deviation. The smaller the magnetic deviation, the better the product characteristic. 1. Material: Sintered neodymium magnet 2. Shape: Ring,Block,Round and etc. 3. Dimensions: Customized 4. Grade: N,M,H,SH,UH,EH,AH 5. Coating: NiCuNI,Epoxy and etc. 6. Magnetized: According to the requirements. 7. Max working Temp.: 80℃ - 220℃

Block Samarium Cobalt Magnet Rectangular SmCo Permanent Magnet

1. Material: Sintered samarium cobalt magnet 2. Shape: Block / Rectangle 3. Dimensions: As required / Customized 4. Grade: YXG28,XYG32H and etc. Click here to check the grade of sintered samarium cobalt magnet 5. Coating: Nickel or Without Plating 6. Magnetized: Through thickness,width,length 7. Max working Temp.: 250℃-350℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :

Grain Boundary Diffusion Sintered NdFeB Magnet

Based on the classical diffusion theory, by diffusion of a small amount of heavy rare earth into the intergranular phase, we achieved the goal of obvious increase of coercive force and higher working temperature for sintered neodymium magnets. 1. Material: Sintered neodymium magnet 2. Shape: Ring,Block,Round and etc. 3. Dimensions: Customized 4. Grade: SH,UH,EH,AH 5. Coating: NiCuNI,Epoxy and etc. 6. Magnetized: According to the requirements. 7. Max working Temp.: 150℃ - 220℃

Arc Samarium Cobalt Magnet Sintered Smco Magnet YXG30H

1. Material: Sintered samarium cobalt magnet 2. Shape: Arc / Segment 3. Dimensions: As required / Customized 4. Grade: YXG28,XYG32H and etc. Click here to check the grade of sintered samarium cobalt magnet 5. Coating: Nickel or Without Plating 6. Magnetized: Diametrical,Through Width,Length 7. Max working Temp.: 250℃-350℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :

Disc Samarium Cobalt Magnet Round Customized Sm2Co17 Magnet

1. Material: Sintered samarium cobalt magnet (Sm1Co5 or Sm2Co17) 2. Shape: Disc / Round 3. Dimensions: As required / Customized 4. Grade: YXG28,XYG32H and etc. Click here to check the grade of sintered samarium cobalt magnet 5. Coating: Nickel or Without Plating 6. Magnetized: Axial,Diametrical 7. Max working Temp.: 250℃-350℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :

Ring Samarium Cobalt Magnet Max Temperature 350 Celsius SmCo Ring Magnet

1. Material: Sintered samarium cobalt magnet 2. Shape: Ring 3. Dimensions: As required / Customized 4. Grade: YXG28,XYG32H and etc. Click here to check the grade of sintered samarium cobalt magnet 5. Coating: Nickel or Without Plating 6. Magnetized: Axial,Diametrical 7. Max working Temp.: 250℃-350℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :

Small Size Samarium Cobalt Magnet Customized SmCo Thin Or Ring Magnet

1. Material: Sintered samarium cobalt magnet (Sm1Co5,Sm2Co17) 2. Shape: Ring,Round,Block and etc 3. Dimensions: As required / Customized 4. Grade: YXG28,XYG32H and etc. Click here to check the grade of sintered samarium cobalt magnet 5. Coating: Nickel or Without Plating 6. Magnetized: As required 7. Max working Temp.: 250℃-350℃ 8. Tolerance: +/-0.05 mm

Tags :

Block Alnico Magnet Alnico 5 or Alnico 8 For Industry Used

1. Material: Block Alnico Magnet 2. Shape: Block / Rectangle 3. Dimensions: As required / Customized 4. Grade: Alnico 5,Alnico 8,Alnico 9 and etc. Click here to check the grade of alnico magnet 5. Coating: Without coating or Polishing process 6. Magnetized: Through thickness,width,length 7. Max working Temp.: 450 ℃-550 ℃ 8. Tolerance: +/-0.05mm or +/-0.1mm

Tags :
