Magnetic Bar
Magnetic Bar Magnetic Bar Magnetic Bar Magnetic Bar Magnetic Bar Magnetic Bar

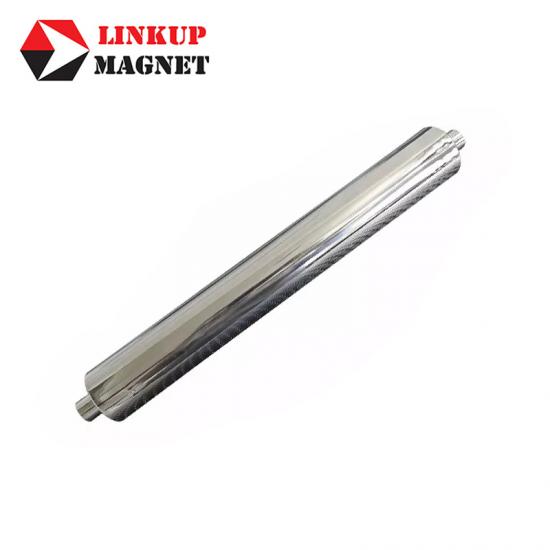

Magnetic Tubes Strong Magnetic Rod 13000GS Magnetic Bar

1. Type: Magnetic bar/tube/rod

2. Diameter of tubes: D6,D8,D9,D10,D12,D16,D19,D25,D32,D38,D50,D63 mm and etc.

3. Material: NdFeB/Ferrite/Smco + SUS304/SUS316L Stainless Steel
4. Surface magnetic force: 2000 GS to 14000 GS

5. Max working temp.: 80℃-300℃
6. Type of then ends: External thread,Internal thread,Eyebolt or Customized.

7. Surface treatment: Polishing

INQUIRE now
  • Product Detail
  • Technical Specifications
The magnetic bars/tubes/rods are made of rare earth permanent magnet,covered with SUS304 or SUS316L stainless steel tube and are seal-welded.By using its strong power magnetic force,small ferromagnetic impurity could be picked up in various powder and pulp,thus improving the purity of materials,to upgrade products' quality and protecting the downstream equipment.

Applications Of Magnetic Bars/Tubes/Rods
Magnetic bars/rods/tubes are mainly used to remove ferromagnetic impurities in powder,granular and liquid or slurry.
They are widely used in caramics,electricity,mining,plastics,chemicals,rubber,pharmaceuticals,food,environmental protection,pigments,dyes,electronics,metallurgy and other industries.
Magnetic bar could be fixed separately in the feed port and discharging port or used in the pipeline,and could also be used to manufacture complete sets of the magnetic grid,magnetic drawer,magnetic liquid trapsmagnetic rotary separator.

Features Of Magnetic Bars/Tubes/Rods
1. No energy consumption,no pollution.
2. Can be installed in any position on the production line that can be in contact with materials,saving space and easy installation.
3. With stong magnetic power,max surface magnetic force can read 14000 GS.
3. Welded with watertight.
4. The operating temperature can be from 80℃ to 300℃.
5. Can be customized according to customer's requirements and production site conditions.

The Ends Of Magnetic Bars/Tubes/Rods

External thread
 Internal thread


Flat
 Eyebolt


Customized 1 Customized 2



Specifications of Magnetic Bars/Tubes/Rods
Magnetic
Force
 Diameter 		4000GS 5000GS 6000GS 7000GS 8000GS 10000GS 11000GS 12000GS
Φ6(0.24") √UH － － － － － － －
Φ8(0.31") √UH － － － － － － －
Φ9(0.35") √UH － － － － － － －
Φ10(0.39") √UH － － － － － － －
Φ12(0.47") √UH √UH － － － － － －
Φ16(0.63") √UH √UH √UH － － － － －
Φ19(0.75") √UH √UH √UH √UH － － － －
Φ20.3(0.80") √UH √UH √UH √UH － － － －
Φ22(0.85") √UH √UH √UH √UH √UH － － －
Φ25(1.00") √UH √UH √UH √UH √UH √UH √N √N
Φ32(1.25") √UH √UH √UH √UH √UH √UH √N √N
Φ38(1.50") √UH √UH √UH √UH √UH √UH √N √N
Φ50(1.75") √UH √UH √UH √UH √UH √UH √N √N
Φ63(2.48") √UH √UH √UH √UH √UH √UH √N √N
