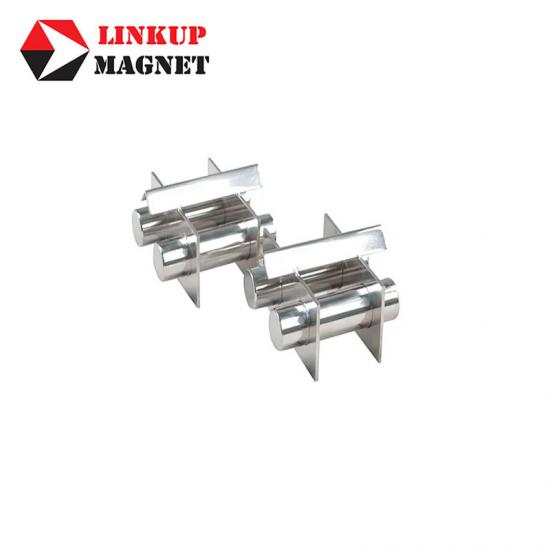

Magnetic Grate Rare Earth Magnetic Grid
Magnetic Grate Rare Earth Magnetic Grid Magnetic Grate Rare Earth Magnetic Grid Magnetic Grate Rare Earth Magnetic Grid Magnetic Grate Rare Earth Magnetic Grid Magnetic Grate Rare Earth Magnetic Grid Magnetic Grate Rare Earth Magnetic Grid Magnetic Grate Rare Earth Magnetic Grid

Magnetic Grate Rare Earth Magnetic Grid

1. Type: Magnetic Grate

2. Diameter of tubes: D25mm standard or Customized

3. Material: NdFeB/Ferrite/Smco + SUS304/SUS316L Stainless Steel
4. Surface magnetic force: 2000 GS to 12000 GS

5. Max working temp.: Max 80℃-350℃
6. Type: Rctangular or round shape series

7. Surface treatment: Well polishing,Sand blasting,Abrasion resistance solution.

INQUIRE now
  • Product Detail
  • Technical Specifications
Magnetic Grate is a specially made product that is used in the removal process of small-sized to medium ferrous tramp metal impurities from those dry and free-flowing products presented in vertical chutes,housings,hopper and catch bins.It is the best and economical solution for the magnetic protection of equipment like extruding,milling,and mixing.

Types Of Magnetic Grate
1. Round shape magnetic grate
2. Exay-cleaning magnetic grate
3. Magnetic grate with stainless steel rod baffles
4. Magnetic grate with 90° angular baffles
5. Magnetic grate with food grade welding and polishing.

Features Of Magnetic Grate
1. The shelf and pipe material are 304 or 316L stainless steel,which is corrosion-resistant and pollution-free.
2. The standard magnetic frame is made of metal frame and 25mm diameter magnetic rods arranged with a center distance of 50mm, and then screwed,assembled or welded.
3. The surface can be polished to meet the requirements of food or drug use grade.
4. Standard working temperature ≤80°C,under special requirements,the maximum working temperature can reach 350°C.
5. Ordinary type,easy-to-clean type,with guide rod or guide plate type,square,round and other special specifications required by customers can be provided.

Standard Size Of Rectangular Shape Magnetic Grate

Size Layer Height Center distance. A Center distance. B
Nos of
magnetic bars
100*100 1 40 50mm 40mm 2
2 80 3
150*150 1 40 3
2 80 5
200*200 1 40 4
2 80 7
250*250 1 40 5
2 80 9
300*300 1 40 6
2 80 11
350*350 1 40 7
2 80 13
400*400 1 40 8
2 80 15
450*450 1 40 9
2 80 17
500*500 1 40 10
2 80 19


Standard Size Of Round Shape Magnetic Grate

Size Layer Height Center distance.A Center distance.B
Nos of
magnetic bars
Φ100 1 40 50mm 40mm 2
2 80 3
Φ150 1 40 3
2 80 5
Φ200 1 40 4
2 80 7
Φ250 1 40 5
2 80 9
Φ300 1 40 6
2 80 11
Φ350 1 40 7
2 80 13
Φ400 1 40 8
2 80 15
Φ450 1 40 9
2 80 17
Φ500 1 40 10
2 80 19

Specifications of Magnetic Bars/Tubes/Rods
Magnetic
Force
 Diameter 		4000GS 5000GS 6000GS 7000GS 8000GS 10000GS 11000GS 12000GS
Φ6(0.24") √UH － － － － － － －
Φ8(0.31") √UH － － － － － － －
Φ9(0.35") √UH － － － － － － －
Φ10(0.39") √UH － － － － － － －
Φ12(0.47") √UH √UH － － － － － －
Φ16(0.63") √UH √UH √UH － － － － －
Φ19(0.75") √UH √UH √UH √UH － － － －
Φ20.3(0.80") √UH √UH √UH √UH － － － －
Φ22(0.85") √UH √UH √UH √UH √UH － － －
Φ25(1.00") √UH √UH √UH √UH √UH √UH √N √N
Φ32(1.25") √UH √UH √UH √UH √UH √UH √N √N
Φ38(1.50") √UH √UH √UH √UH √UH √UH √N √N
Φ50(1.75") √UH √UH √UH √UH √UH √UH √N √N
Φ63(2.48") √UH √UH √UH √UH √UH √UH √N √N
